Tough Small and Energy Environment friendly Desktop PC • Jagat Evaluate

Did you ever learn about “NUC”? NUC which stands for Subsequent Unit of Computing is Intel's designation for a tiny PC. So small, this NUC is normally in a position to be positioned even in a restricted house, the place most likely desktop PCs in most cases can't be handled the similar on account of their rather greater dimensions.

Intel has simply introduced the Intel NUC 9 Excessive Equipment NUC9i9QNX, the place this tool is an excessive NUC or small PC for Gaming, VR, Content material Introduction functions, even for extra critical Streaming functions.

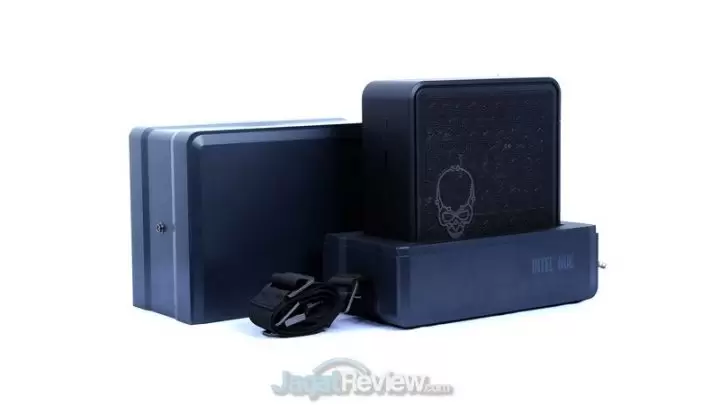

Provide within the Jagat Evaluate trying out lab, the Intel NUC 9 Excessive Equipment NUC9i9QNX is packaged like in a novel field that resembles a "Army Field".

Design and Specification

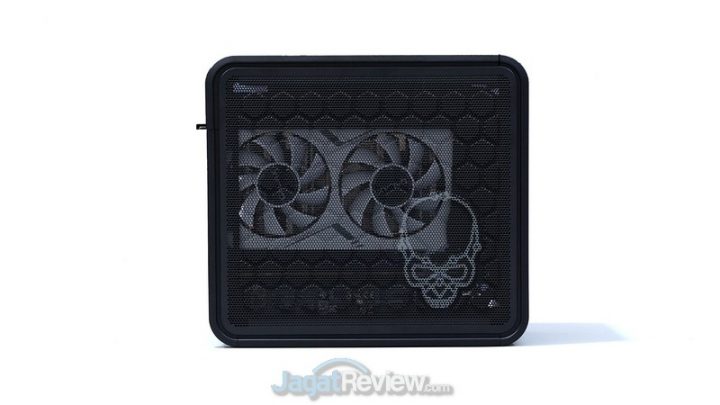

Intel NUC 9 Excessive Equipment NUC9i9QNX has a big 5 Liter Case with dimensions of 23.8 x 21.6 x 9.6 cm, very small and a lot more house environment friendly than typical ATX instances. The peak of the casing from the NUC itself is simplest about as top as the scale of a 750 ml mineral water bottle.

This NUC makes use of steel subject matter for the interior body of the casing and slide panels, whilst the entrance, most sensible, and backside frames use polycarbonate. The burden of this tool on my own, at the side of two RAM SO-DIMMs, one M.2 SSD, and an put in Graphics Card is simplest about 3.7 kg. And this tool can turn out to be a Moveable Gaming Desktop PC when blended with a Moveable Gaming Track and Wi-fi Gaming Keyboard & Mouse.

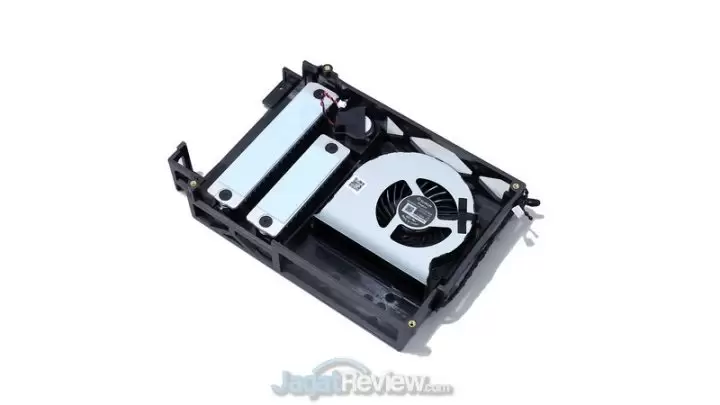

Seeing the contents within, as a result of it's other from typical Desktop PCs, the Intel NUC 9 Excessive Equipment makes use of a kind of Growth Card with the identify Compute Component to put the primary parts such because the processor, RAM, and Garage. And if desired, this Compute Component can also be changed with every other Compute Component with a distinct processor sort. Lately, the present Compute Component makes use of an Intel Core ninth Gen H-Collection computer processor with a call from Core i5 to Core i7 and Core i9.

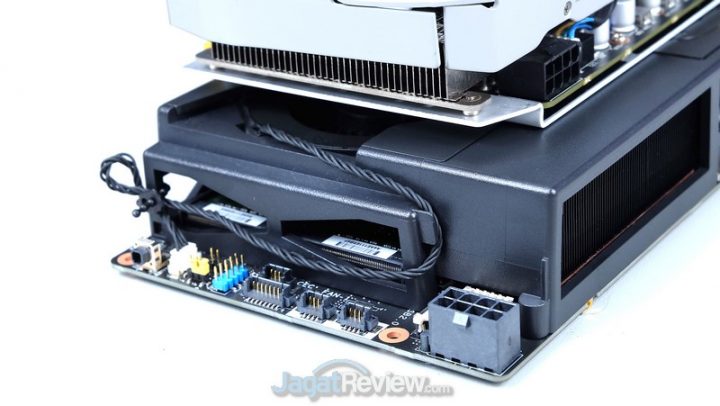

Along with the processor part, Compute Component additionally has two SO-DIMM RAM slots and two M.2 slots. Compute Component could also be supplied with quite a lot of connectors that supply I / O. This Compute Component shall be put in right into a PCIe 3.0 x16 slot at the Baseboard throughout the Casing. The baseboard itself is a small PCB throughout the case that has two PCIe 3.0 x16 slots, one PCIe 3.0 x4 slot, and one M.2 slot. The second one PCIe 3.0 x16 slot is used to put in the Desktop Graphics Card.

This distinctive modular gadget with Compute Component and Desktop Graphics Card make stronger lets in the Intel NUC 9 Excessive Equipment to be freely upgradeable one day whilst keeping its small and compact shape issue.

As a result of in most cases all forms of Intel NUC are offered as Barebone Desktop PCs, they're normally no longer supplied with RAM, Garage, Graphics Card and Working Gadget parts. The Intel NUC 9 Excessive Equipment that you just get could have other specs from those we examined on this dialogue.

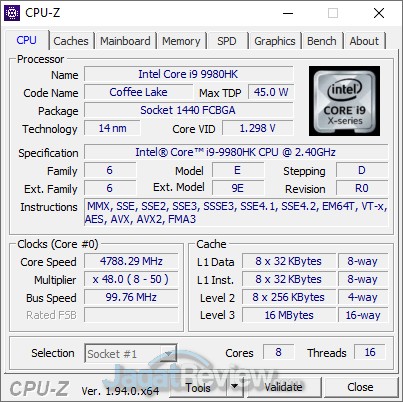

  • Processor: Intel Core i9 9980HK
  • Reminiscence/RAM: 16 GB DDR4 3200 MHz (2x 8 GB Twin Channel)
  • Garage: Samsung SSD 970 Evo Plus 500 GB
  • Built-in Graphics: Intel UHD Graphics 630
  • Discrete Graphics: GAALX GeForce RTX 2070 White Mini

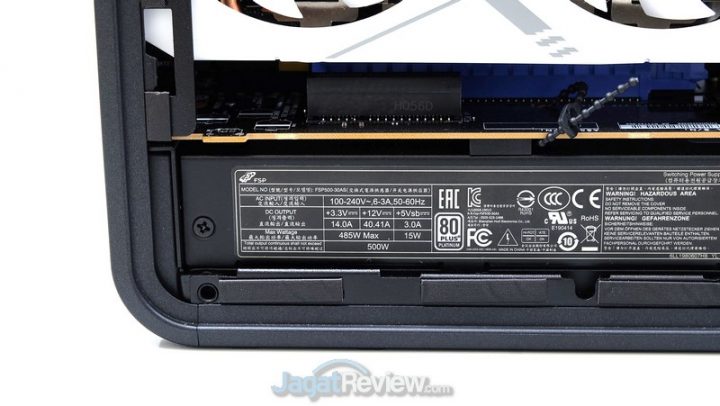

  • Energy Provide: 500 Watt with 80 Plus Platinum potency degree

Connectors and Buttons

DSCF4282

Entrance Panel (Supplied by way of Casing)

  • Energy Button
  • 1X SDXC Card Reader with UHS-II velocity same old
  • 2X USB 3.1 Gen 2
  • 1X 3.5MM Audio Jack

Backpanel (Supplied by way of Compute Component)

  • 4X USB 3.1 Gen 2
  • 2X Gigabit Ethernet
  • 1X HDMI
  • 1X 3.5MM Audio Jack
  • 2X Thunderbolt 3.0
    • Supplies Information Switch velocity as much as 40 Gbps
    • Can be utilized to attach an eGPU or Exterior Garage unit

Wi-fi Connectivity

  • Compute Component comprises Intel Wi-Fi 6 AX200 module
    • Helps Wi-Fi 6 / Wi-Fi ax with MU-MIMO and Gigabit Wi-Fi options
    • Toughen Bluetooth V5.1
